Industry, Production, Logistics / Chemicals / Logistics / Pharma­ceuticals

VIASOL WHG neo classic

Tags

  • abrasion resistant
  • chemical hight resistance
  • chemical resistance according to § 62 WHG
  • crack-bridging static
  • easy to clean
  • heavy-duty
  • homogenous (slick) surface
  • hygienic
  • jointless
  • liquid-tight
  • medium-heavy resilient
  • passable
  • self-levelling

Certificates

WHG i

WHG

Highly chemical resistant epoxy resin based coating system (§62 WHG)

DIN EN 1062-7 i

DIN EN 1062-7

Static crack-bridging ≤ 0,4 mm

DIN EN 13813 i

DIN EN 13813

Impact strength ≤ 4 Nm (IR4)

DIN EN 1542 i

DIN EN 1542

Adhesive strength >2,0 N/mm² nach 28d

DIN EN ISO 2812-1 i

DIN EN ISO 2812-1

Paints and varnishes - Determination of resistance to liquids

DIN EN ISO 868 i

DIN EN ISO 868

Shore Hardness D 67 after 28 d

WHG - highly chemical resistant

Highly chemical resistant epoxy resin based coating system, hard wearing with very good mechanical and excellent chemical properties, statically crack bridging, tested and approved according to the German water management act § 62 WHG)

System Benefits

  • high chemical resistance pursuant to the German Water Management Act
  • Statically crack bridging up to 0.4 mm
  • permanently impervious to liquids
  • liquid-tight
  • Hygienic (ISEGA certified)
  • jointless and non-porous
  • suitable for driving access as per DIBT
  • capable of bearing high mechanical loads
  • good resistance to abrasion
  • smooth surfaces that are easy to clean
  • resistant to backward moisture penetration
  • available in a wide range of colours

Usage areas

  • Chemical Industry
  • Pharmaceutical Industry
  • Warehouses for chemical products
  • Workshops
  • Laboratories
  • Production areas with WHG requirements
  • Secondary containment
  • Production areas high chemical resistance

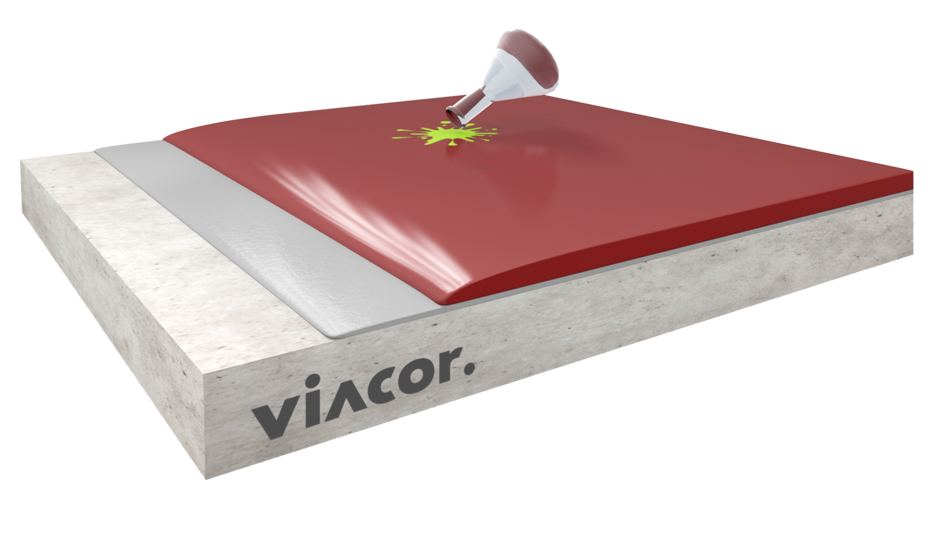

Build-up & System Components

VIASOL EP-C539

Coating

VIASOL EP-P239

Primer
