Exposed Parking Areas / Ramps & Spiral Ramps / Parking / Bridge Side­walks

VIASOL DECK M rapid

Tags

  • abrasion resistant
  • chemical resistance
  • color stability
  • crack-bridging dynamic
  • fast curing
  • jointless
  • liquid-tight
  • outdoor
  • passable
  • slip-resistant

Certificates

DIN 1504-2 i

DIN 1504-2

Surface protection products – Hydrophobic Impregnation

DIN 18532 i

DIN 18532

  • Requirements, planning and execution principles
  • Waterpoofing with sealing materials to be processed in liquid form
DIN V 18026 i

DIN V 18026

Surface protection systems for concrete made from products according to DIN EN 1504-2

OS 10 i

OS 10

Waterproofing membrane corresponds to RILI SIB 2001 class OS 10

TÜV profiCert standard i

TÜV profiCert standard

The TÜV PROFiCERT-product Interior Standard includes

  • AgBB
  • MVV TB, appendix 8
  • Belgian VOC Regulation
  • BREEAM Exemplary Level
  • French VOC Regulation A+
  • LEED v4 (outside North America)

highly wear-resistant OS 10 system

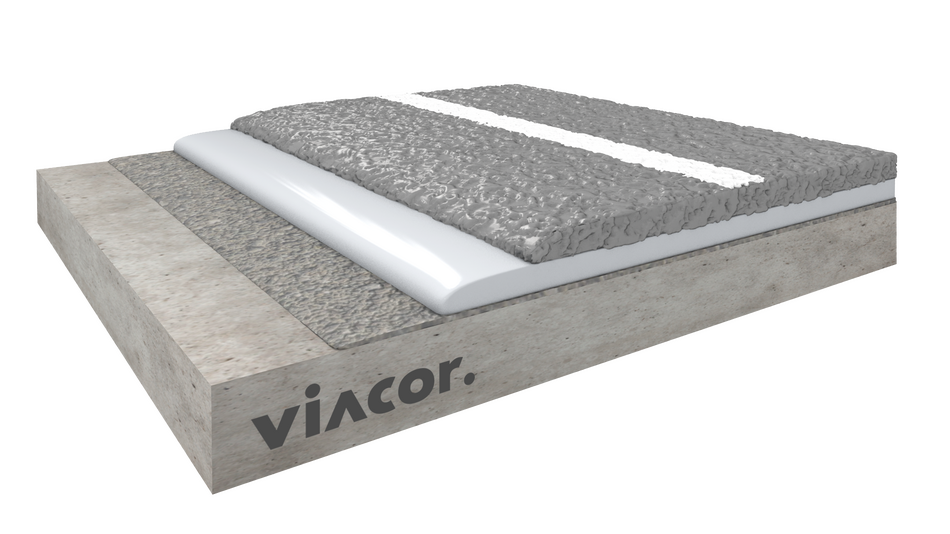

Fast curing car park deck coating system (formerly known als VIASOL DECK rapid M) with separate, manually applied waterproofing membrane and wear coat with enhanced crack bridging properties class B 4.2 (-20°C) for multi storey car parks for exposed and intermediate decks and sidewalks on bridges with pedestrian and vehicle traffic. According to DIN EN 1504-2, DIN V 18026 , DIN 18532 1+6 and RILI SIB 2001 class OS10.

System Benefits

  • Fast and low temperature curing (open to traffic after 48 hours)
  • Tested low-emission
  • Highest wear resistance
  • 90% sand reduction
  • Odourless
  • Short installation times
  • No rashes
  • CO² reduction
  • Plasticizer-free
  • Checked according to DIN EN 1504-2 and DIN V18026, RILI SIB 2001, class OS10
  • Increased dynamic crack bridging class B4.2 at -20 ° C
  • Chemically resistant to oils, petrol, diesel and de-icing salt
  • Anti-slip properties for pedestrians and vehicles
  • Parking Abrasion Test (PAT) 20.000 cycles - no abrasion

Usage areas

  • Exposed Parking Areas
  • Ramps & Spiral Ramps
  • Bridge Sidewalks

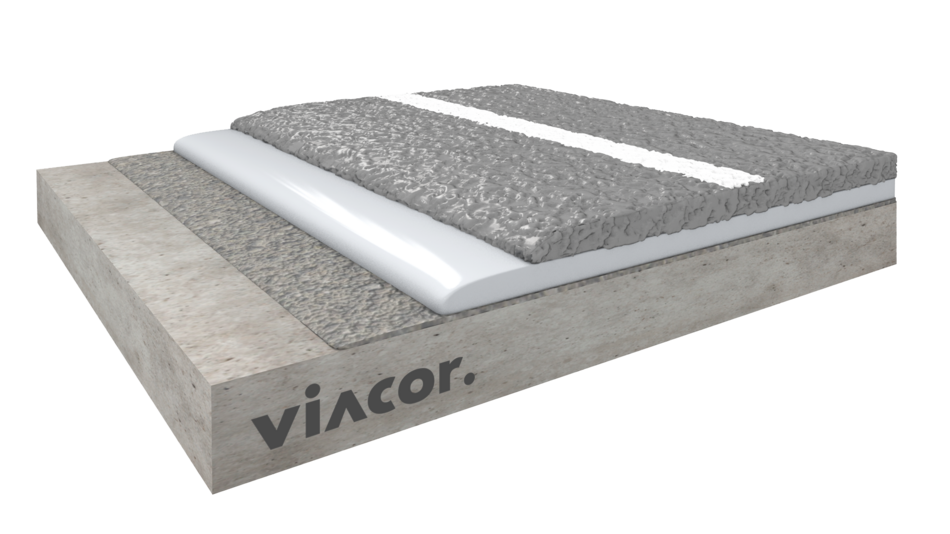

Build-up & System Components

VIASOL UREA S6001P

Wear coat

VIASOL PU-L2000

Seal coat

VIASOL EP-T703

Primer
