Park District Q16 - 12.000 m²

Three surface protection system across an area of 12.000 m² in the car park

In 2000 the regional capital city, Stuttgart, acquired the 22 hectare area with the intention of building the Olympic village there, but after the Olympic organising Committee awarded the 2012 games to London, Stuttgart had new opportunities for the use for this land.

„NeckarPark:  Urban, exciting and durable“

This is the strapline for this district of the city which is due for completion by 2025. It will comprise of housing, office space, educational and sporting facilities and a wide array of leisure space, along with a good infrastructure of restaurants and shops giving the district a vibrant, futuristic feel - an oasis of well-being.

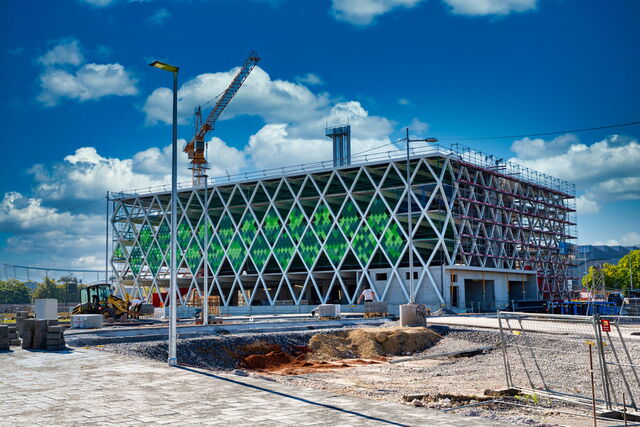

Parkquartier Q16 in Stuttgart Car Park Flooring

The district car park serves as a multi-functional entity

The Q16 multi-storey car park provides heat across all the installations thanks to 2 thermal power stations, offers residents and employees a space for their cars and also has bays for bicycles. VIASOL DECK surface protection systems for multi-storey car parks were applied across the 12,000 m² surface area and the following classifications were used: OS 10, OS 11a and OS 11b.

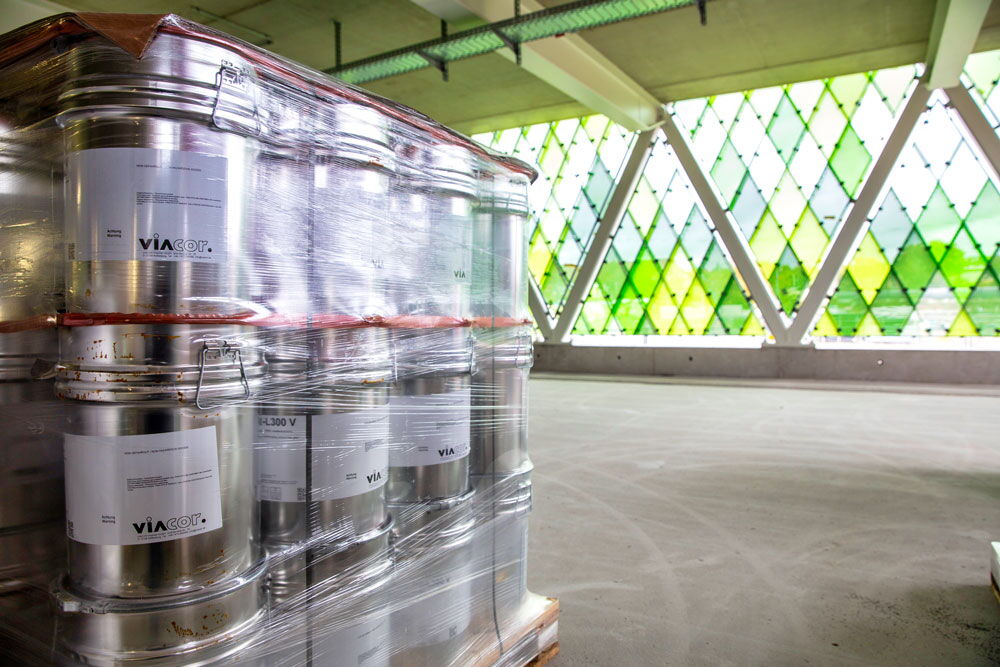

Waterproofing Car Park Areas

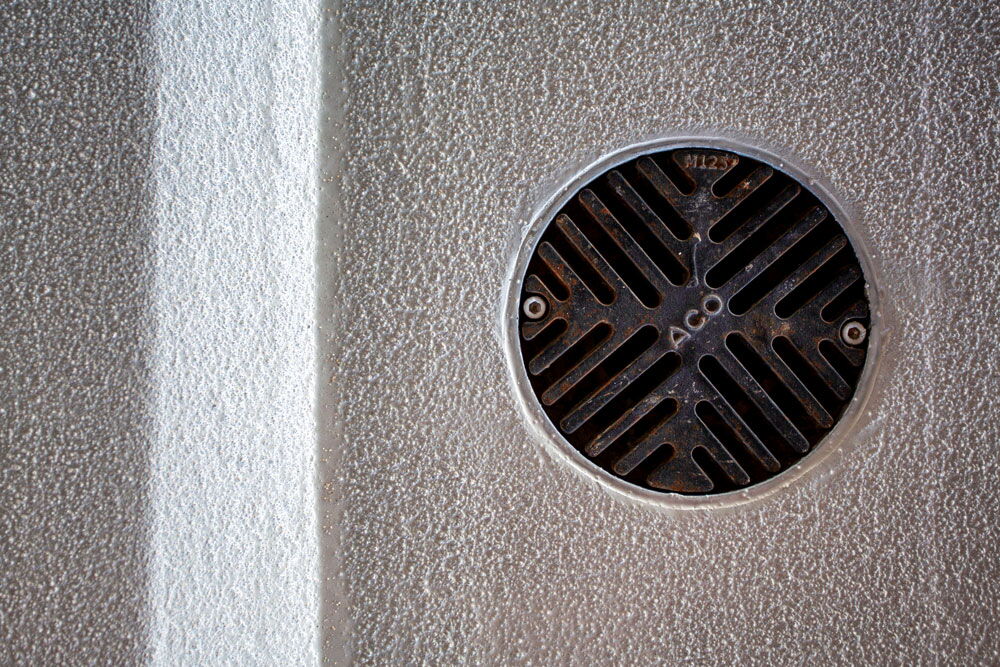

car park flooring system

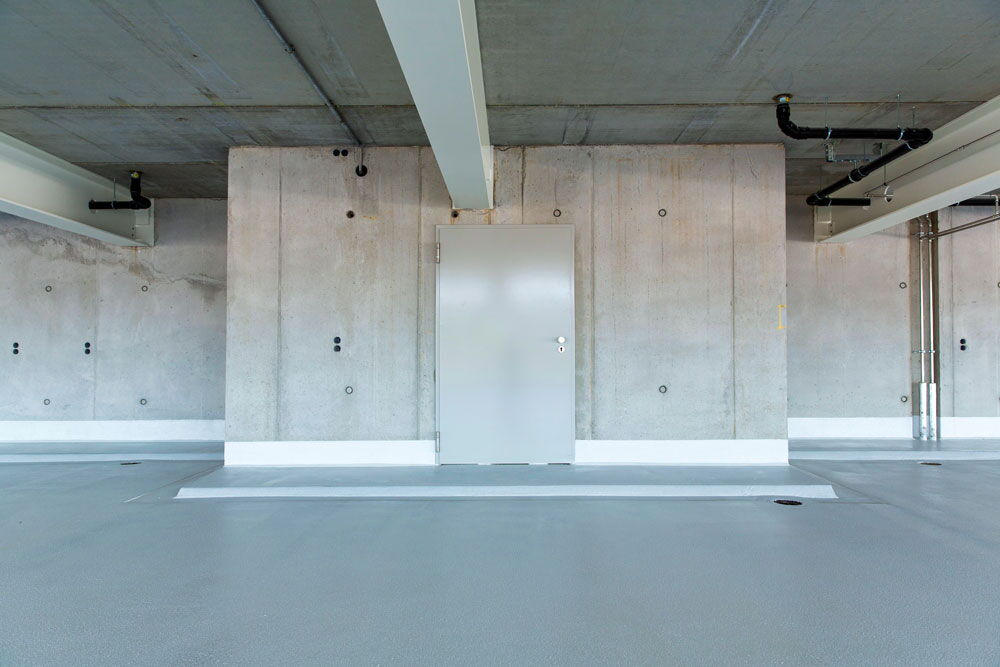

Neckarpark multi-storey car park Stuttgart

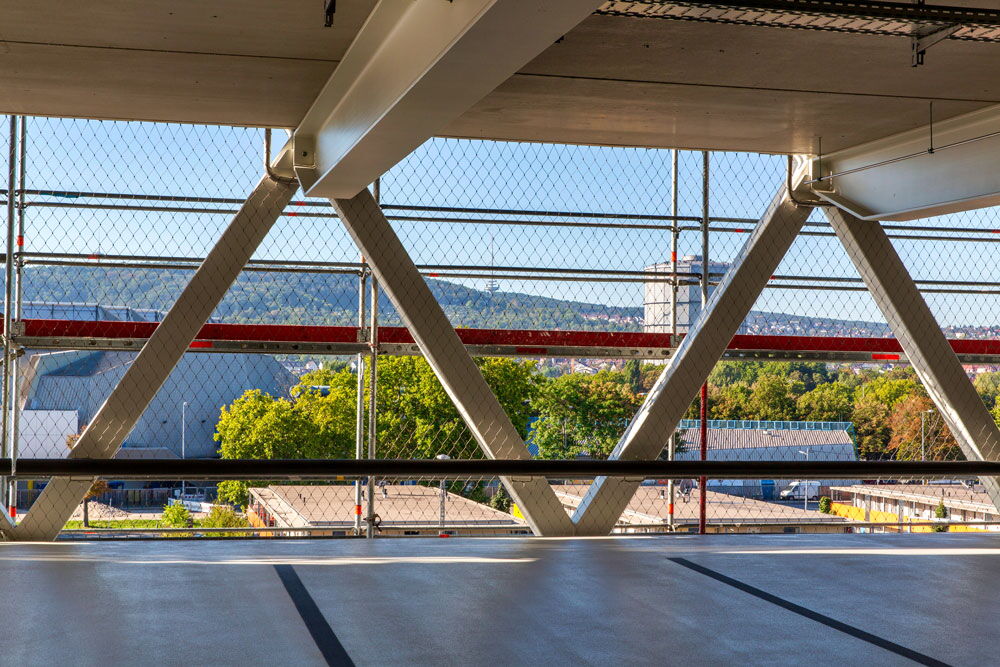

View from Neckarpark Stuttgart
Waterproofing Car Park Areas
car park flooring system
Neckarpark multi-storey car park Stuttgart
View from Neckarpark Stuttgart

The installation of the surface coating systems was determined by the type and amount of traffic in the park district and there were intermediate decks, ramps and underground parking to consider.

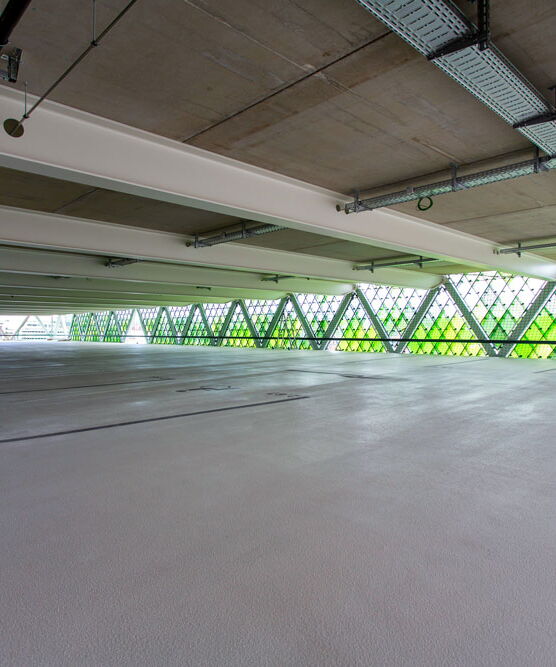

For the intermediate decks the VIASOL DECK 11b plus system protects the surfaces which are accessible for pedestrians and the VIASOL DECK 11a plus system was used on the driveable surfaces.

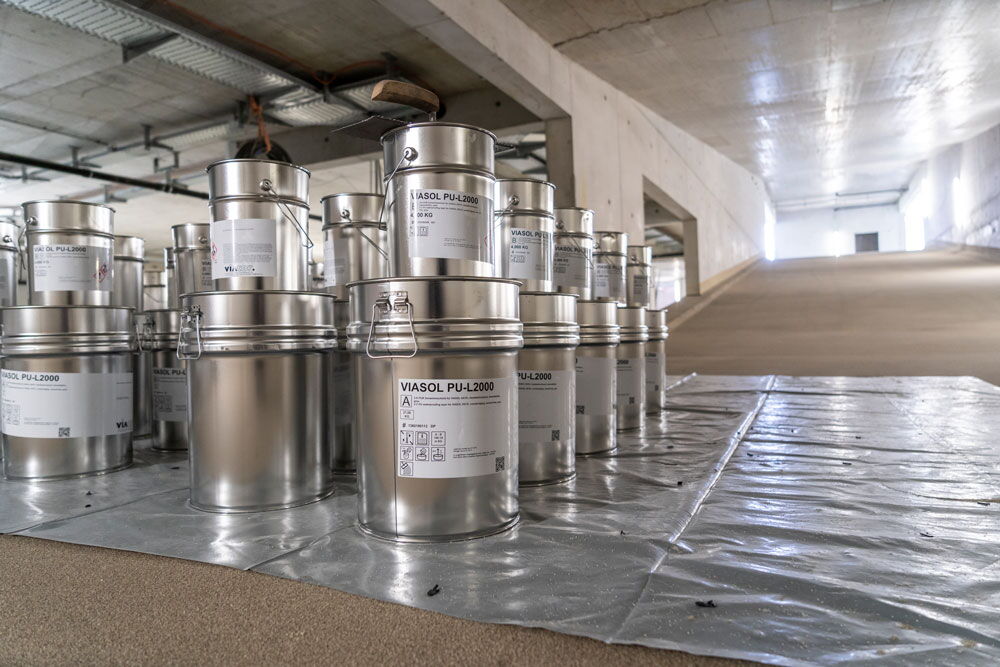

Waterproofing membrane

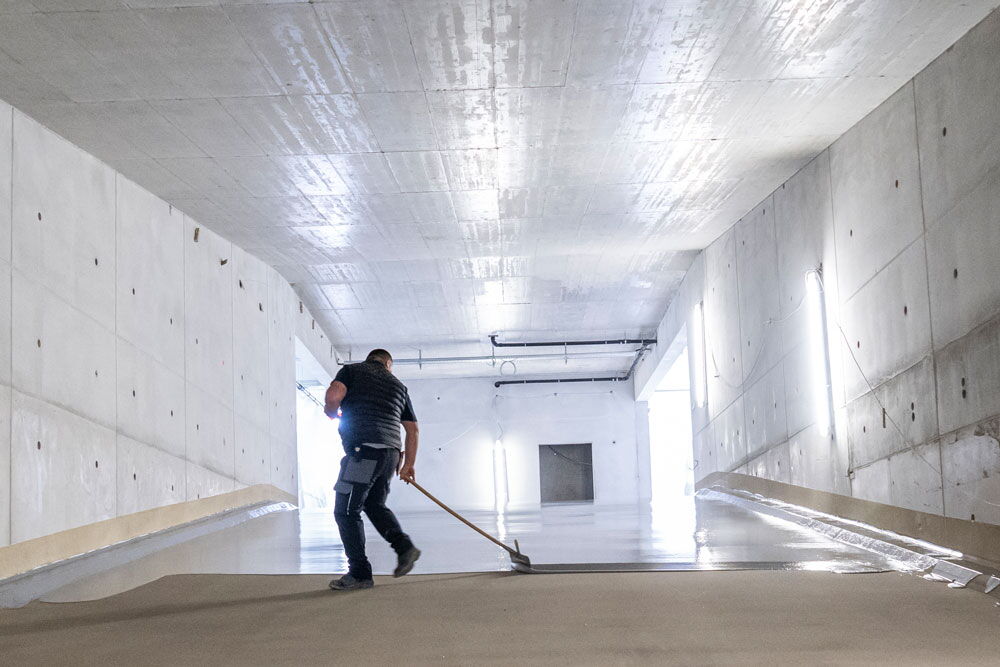

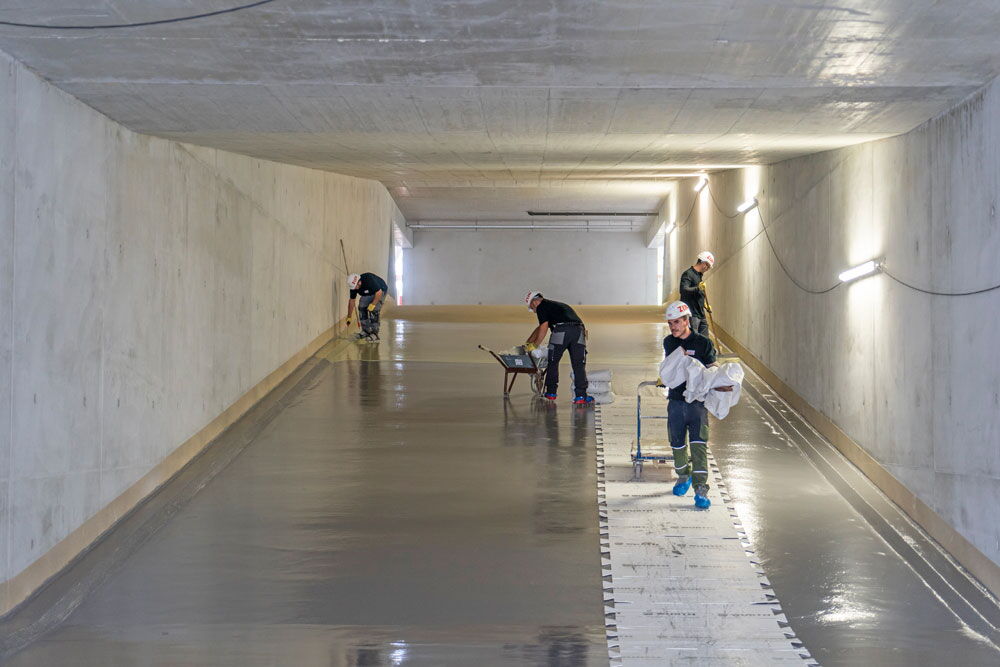

Coat ramp in parking garage
Züblin Team Flooring

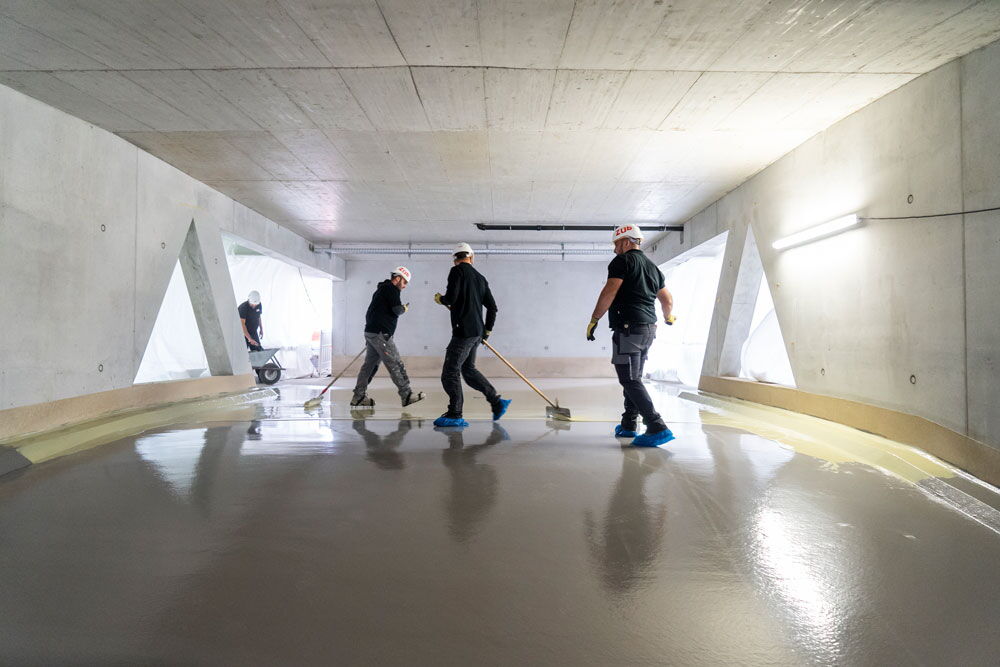

car park floor coating by Züblin

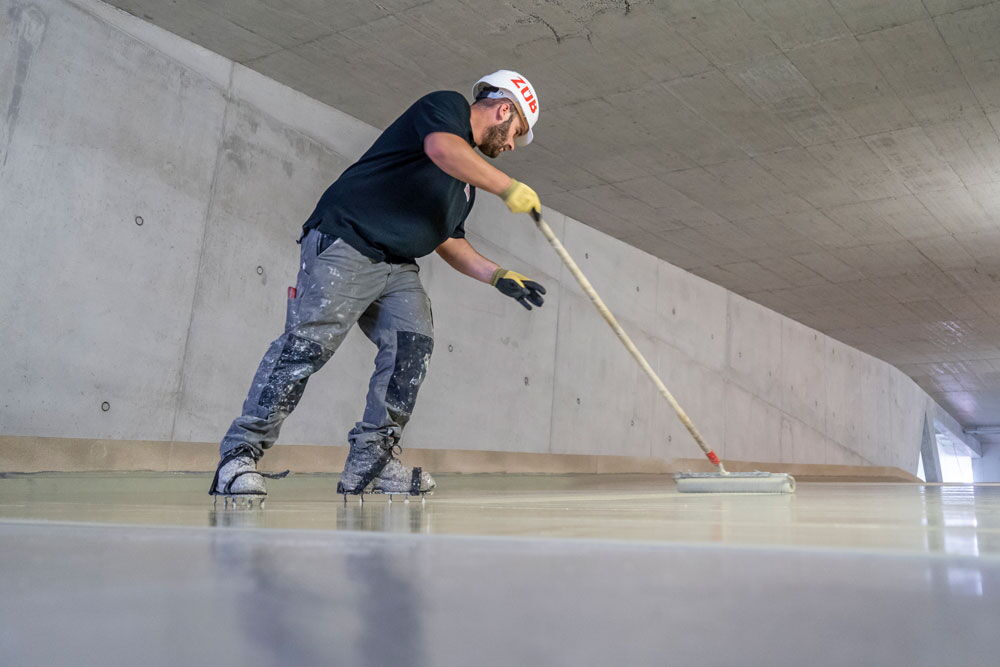

roll the floor coating on the ramp

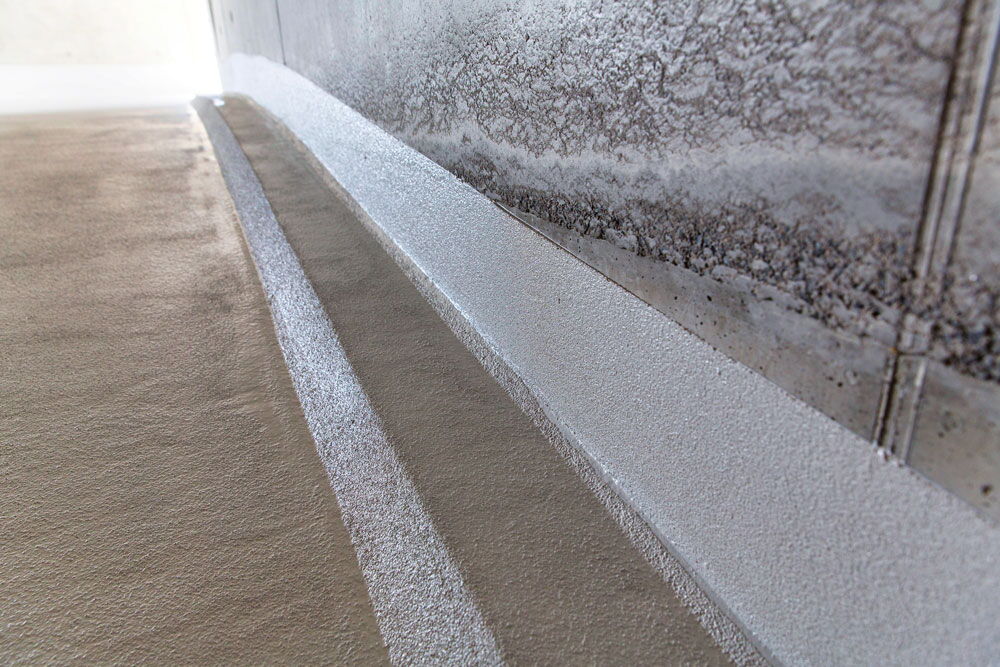

Wall coating in a multi-storey car park

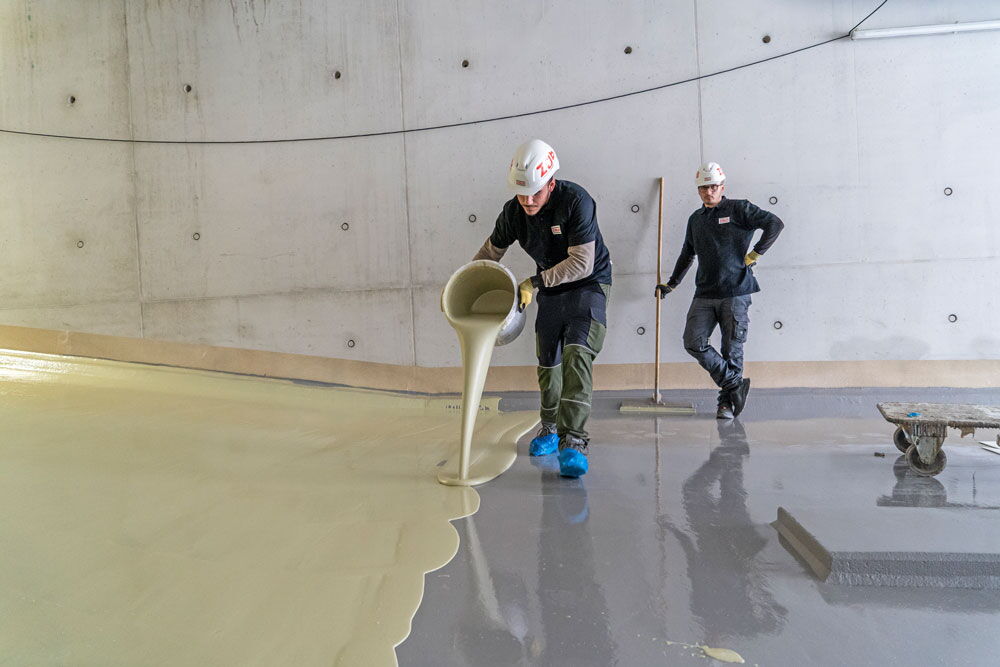

OS 10 System
Waterproofing membrane
Coat ramp in parking garage
Züblin Team Flooring
car park floor coating by Züblin
roll the floor coating on the ramp
Wall coating in a multi-storey car park
OS 10 System

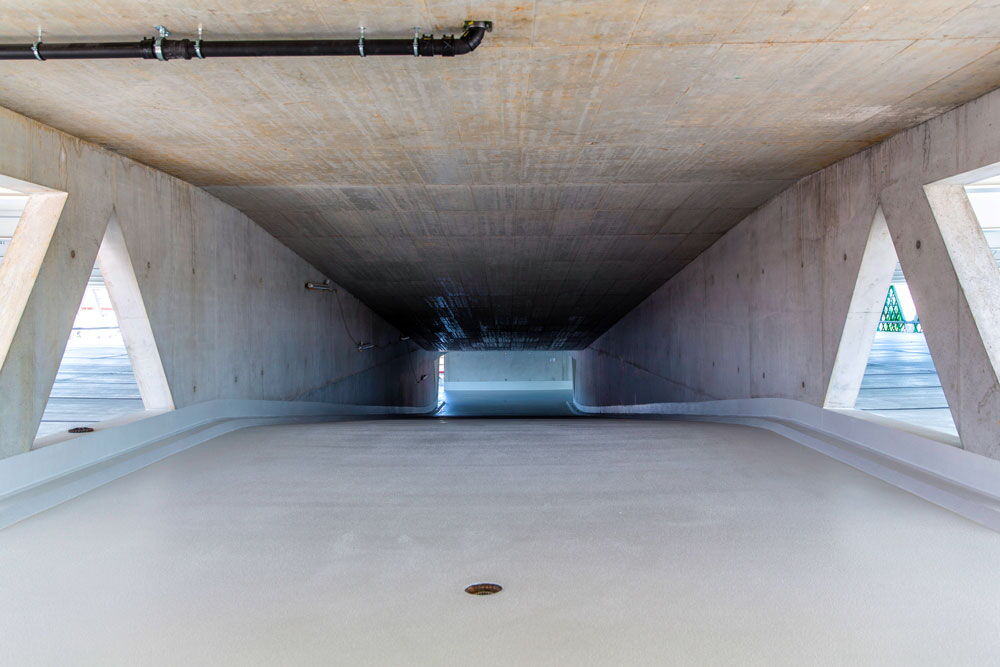

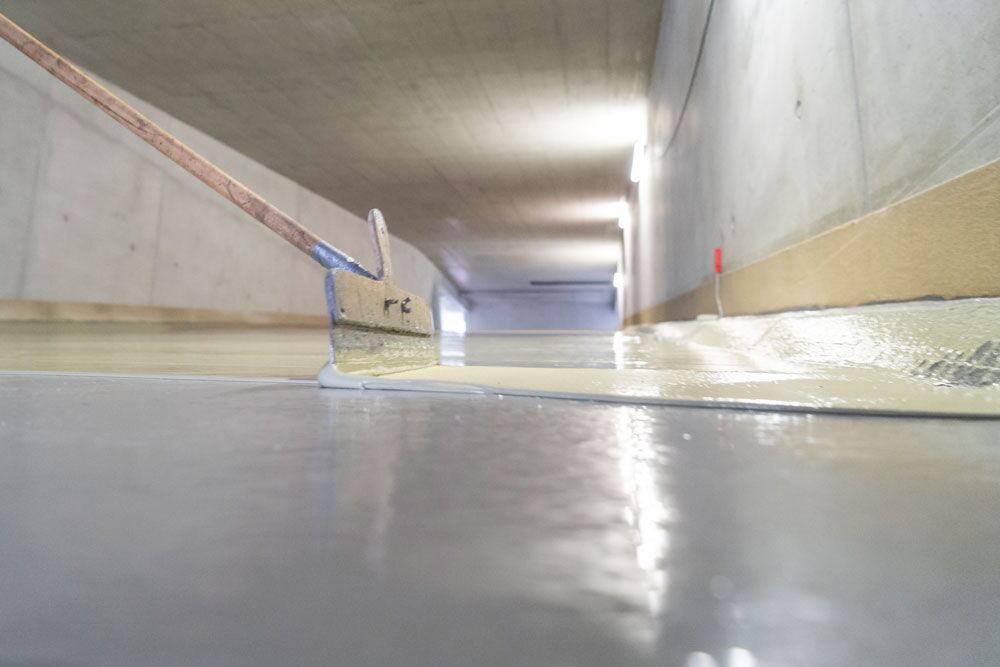

Ramps are also exposed to heavy mechanical loads and VIASOL DECK rapid M prevents the constant impact and tread in the tyres from wearing out in the bends of the ramp.

The VIASOL DECK rapid M is resistant to the constant pressure and abrasion which the tyres produce in the curves.

A vapour diffusive OS 8 system was planned for the surfaces deep down in the underground car park

as moisture can escape upwards but not downwards.

For economical reasons, VIASOL DECK 11a plus was also applied in the underground car park. This system has the added benefit of helping to prevent the penetration of harmful materials into the concrete.

Many thanks to the following participating companies

Client
Landeshauptstadt Stuttgart
